Products

SUPERIORITY WITH A COMPLETE PRODUCT RANGE

Podacel offers the most comprehensive selection of light weight fire-resistant glazed structures in the market – doors, windows and wall structures . Our selection covers a wide range of different B15 and A60 glazed decorative doors and wall structures for a variety of different purposes. One of our most requested products is the space-saving super wide glazed tandem sliding door that is suitable for extra wide openings.

PRODUCT LIST

1. B15 Glazed Hinged Door, single

Fire class: B15
Max frame size: 1541 x 2806 mm (max. frame area 3,6 m2)
Glass sound insulation (dB): 32
Certificate no.: EUFI29-21003539-MED (B+D)

Standard accessories
Lock TrioVing 5016/35
Handle TrioVing 7363
Concealed door closer Dormakaba ITS 96
Standard escutcheons

Download PDF here

2. B15 Glazed Hinged Door, doubleFire class: B15
Max frame size: 2928 x 2484 mm
Glass sound insulation (dB): 32
Certificate no.: EUFI29-21002080-MED (B+D)

Standard accessories
Lock TrioVing 5016/35
Handle TrioVing 7363
Concealed door closer Dormakaba ITS 96 + coordinator
Standard escutcheons

Download PDF here

B15 Glazed Hinged Door, single (80)Fire class: B15
Max frame size: 1580 x 2875 mm (max. area 3,77 m2)
Glass sound insulation (dB): 47
Certificate no.: EUFI29-19000753-MED (B+D)

Standard accessories
Lock TrioVing 5016/35
Handle TrioVing 7363
Concealed door closer Dormakaba ITS 96
Standard escutcheons

Notes
Both for interior and exterior use
Sound and heat insulated
Optional UV protection
Ideal for offshore use

Download PDF here

B15 Glazed Hinged Door, double (80)Fire class: B15
Max frame size: 3047 x 2875 mm (max area 7,29 m2)
Glass sound insulation (dB): 47
Certificate no.: EUFI29-19000753-MED (B+D)

Standard accessories
Lock TrioVing 5016/35
Handle TrioVing 7363
Concealed door closer Dormakaba ITS 96 + coordinator
Standard escutcheons

Notes
Both for interior and exterior use
Sound and heat insulated
Optional UV protection
Ideal for offshore use

Download PDF here

B15 Glazed Hinged Door Deli, single with RFID lock

Fire class: B15
Max frame size: 1520 x 2485 mm
Glass sound insulation (dB): 40
Certificate no.: EUFI29-19001639-MED (B+D)

Standard accessories
VingCard Signature RFID lock by ASSA Abloy
Ansi ADB (Auto Deadbolt) panic lock case
Drop down sill
RFID card reader
Handle Trioving 7363
Standard escutcheons

Notes
No sill needed
Functions as part of a ship’s hotel door lock system
Only for interior use

Download PDF here

A60 GLAZED HINGED DOOR, single

Fire class: A60
Max frame size: 1378 x 2500 mm
Glass sound insulation (dB): 40
Certificate no.: EUFI29-19004097-MED (B+D)

Standard accessories
Lock TrioVing 5016/35
Handle TrioVing 7363
Concealed door closer Dormakaba ITS 96
Standard escutcheons

Notes
For both interior and exterior use
Ideal for offshore use
Ideal for sauna use

Options
Sound insulated  (43 dB)
Heat insulated
UV protection
Hose stream tested version
Weather tight (the final test to be done onboard)

Download PDF here

A60 GLAZED HINGED DOOR, double (80)

Fire class: A60
Max frame size: 2658 x 2500 mm
Glass sound insulation (dB): 40
Certificate no.: EUFI29-21004333-MED (B+D)

Standard accessories
Lock TrioVing 5016/35
Handle Trioving 7363
Concealed door closer Dormakaba ITS 96 + coordinator
Standard escutcheons

Notes
For both interior and exterior use
Ideal for offshore use
Ideal for sauna use

Options
Sound insulated (43 dB)
Heat insulated
UV protection
Hose stream tested version
Weather tight (the final test to be done onboard)

Download PDF here

B15 GLAZED SLIDING DOOR, DELI, single, automatic or manual

Fire class: B15
Max frame size: 1460 x 2595 mm (max. area 3,15 m2)
Glass sound insulation (dB): 40
Certificate no.: EUFI29-19003649

Standard accessories
Automatic version
the necessary auxiliary equipment
Manual version
Lock TrioVing 5049
Pull
Sliding rail and roller    assemblies
Speed limiter (option)

Notes
Both for interior and exterior use
No sill
Available with different automatic mechanisms
The automatic version does not include a mechanical lock
Available as pocket or non-pocket versions (slides into the wall or on the wall   surface)
Door construction is fire tested from both sides with cable penetration.
Glass wall can continue as a continuous wall straight from the door without an   intermediate bulkhead
Note the need for a sufficiently large service hatch to maintain the mechanism

Download PDF here

B15 GLAZED SLIDING DOOR DELI, double, automatic or manual

Fire class: B15
Max frame size: 1322 + 1322  x 2584 mm (max area 5,7 m2)
Glass sound insulation (dB): 40
Certificate no.: EUFI29-21002966-MED (B+D)

Standard accessories
Automatic version
Automatic mechanism with the necessary auxiliary equipment
Manual version
Lock TrioVing 5049
Pull
Sliding rail and roller    assemblies
Speed limiter (option)

Notes
Both for interior and exterior use
No sill
Available with different automatic mechanisms
The automatic version does not include a mechanical lock
Available as pocket or non-pocket versions (slides into the wall or on the wall
  surface)
Door construction is fire tested from both sides with cable penetration.
Glass wall can continue as a continuous wall straight from the door without an   intermediate bulkhead
Note the need for a sufficiently large service hatch to maintain the mechanism

Download PDF here

B15 GLAZED TANDEM SLIDING DOOR

Fire class: B15
Max leaf sizes:
Single leaf sliding door 1395 x 2760 mm
Double leaf sliding door (1395 + 1395) x 2760 mm
Two leaf tandem door (1395 + 1415) x 2,760 mm
Three leaf tandem door (1395 + 1415 + 1415) x 2,760 mm
Four leaf tandem door (1395 + 1415 + 1415 +1415) x 2760 mm
etc. opening width unlimited
Glass sound insulation (dB): 33
Certificate no.: EUF129-19000755-MED (B+D)

Standard accessories
Automatic version
Automatic mechanism with  the necessary auxiliary equipment
Manual version
Lock TrioVing 5049
Puller
Sliding rail and roller assemblies

Notes
Opening width unlimited
Note the need for sufficiently large service hatch to maintain the mechanism
Opens one way or both ways
For interior use only
Available with different automatic mechanisms
Available as pocket or non-pocket versions (door leaf slides into the wall or on   the wall surface)
Door construction is fire tested from both sides

Download PDF here

B15 GLAZED WALL / PARTITION (65)

Fire class: B15
Max frame size:
As single partition 1482 x 2582 mm
Middle partition 1436 x 2582 mm
Edge partition 1459 x 2582 mm
Glass sound insulation (dB): 34
Certificate no.: EUFI29-21001945-MED (B+D)

Standard delivery Continuous glass wall:
Vertical cover plates matching the frame finish are included in the delivery

Notes
Can be delivered as a single window or as a continuous glass wall
Width of glass wall unlimited
For interior use only

Download PDF here

B15 GLAZED BULKHEAD / WALL (80)

Fire class: B15
Max frame size: 1438 x 2730 mm
Max bulkhead size height: 2730 mm, width unlimited
Glass sound insulation (dB): 47
Certificate no.: EUFI29-19000754-MED (B+D)

Standard delivery Continuous glass wall:
Vertical cover plates matching the frame finish are included in the delivery

Notes
Both for interior and exterior use
Can be delivered as a single window or as a continuous glass wall
Width of glass wall unlimited
Both for interior and exterior use
Ideal for offshore use
Also available with solid components

Download PDF here

B15 GLAZED BUTT JOINT BULKHEAD / WALL

Fire class: B15
Max glass pane size width: 1000 mm
Max frame size, single: 1080 x 2735 mm
Max bulkhead size height: 2735 mm, width unlimited
Glass sound insulation (dB): 39
Certificate no.: EUFI29-19000756-MED (B+D)

Silicone seam colours Black, translucent, grey

Notes
Continuous glass wall structure
Width of glass wall unlimited
Silicone vertical seams
Glazing completed at the factory or by the client onboard the ship
Straight wall structure0
For interior use only

Download PDF here

A60 Glazed Wall / Partition

Fire class: A60
Max frame size: 1482 x 2578 mm
Glass sound insulation (dB): 40
Certificate no.: EUFI29-21004334-MED (B+D)

Standard delivery:
Vertical cover plates matching the frame finish are included in the delivery

Notes
Can be delivered as a single window or as a continuous glass wall
Width of glass wall unlimited
For both interior and exterior use
Ideal for offshore use
Ideal for sauna use

Options
Sound insulated
Heat insulated
UV protection
Hose stream tested version

Download PDF here

Doors are equipped with concealed door closers and appealing barrel hinges as well as a large range of fittings including standard or special decorative pulls, solutions for access control as well panic exit solutions.

For more detailed technical information, please have a look on our catalogue here.

Pocadel - Technical Catalogue 2021

Please contact us for special sizes.

NEW B15 GLAZED DELI DOORS

B15 GLAZED DOOR DELI WITH RFID ELECTRONIC LOCK

One of the latest members in our product family is the B15 single leaf hinged door with a VingCard RFID electronic lock.

The door can be delivered with decorative metal nets, smart glass, led lights or digiprints laminated inside the glass panes. The only door of its kind in the market. Contact us for more detailed information.

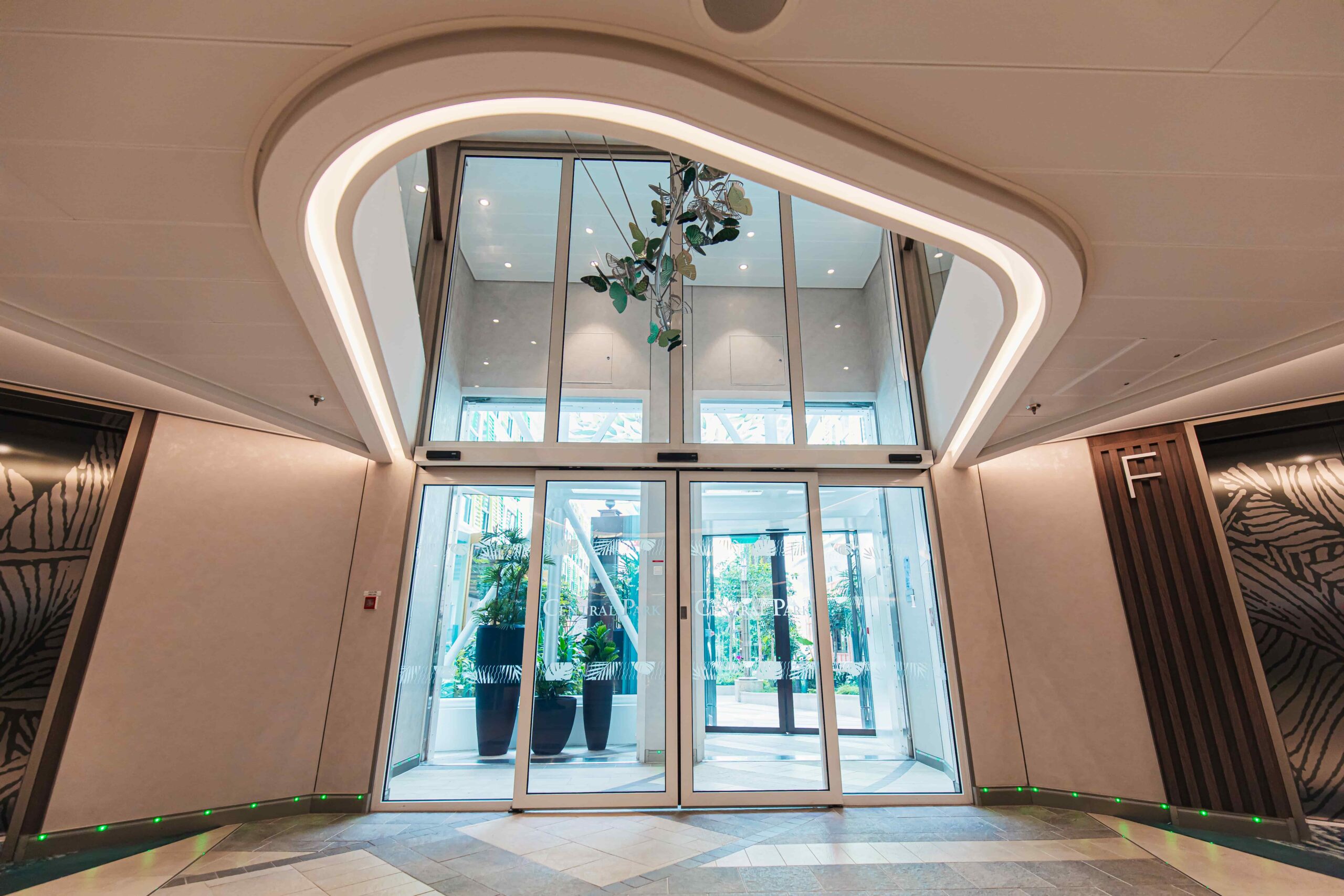

B15 AUTOMATIC, GLAZED SLIDING DOOR DELI, single and double leaf

  • tested on both sides
  • tested with complete drive unit with Dorma ES200 automation
  • no threshold
  • with B15 bulkhead penetration for drive unit cables
  • automatic door can be delivered without mechanical lock
  • door can be delivered manual with mechanical lock
  • with speed limiter, also available in manually driven door (“dead man’s pull”) – Pocadel’s own solution for rough sea conditions
  • glass available with decorations laminated inside the glass panes (decorative metal nets, led lights, smart glass, digi prints, coloured glass…)
